What Is COB LED Display?

LED displays are everywhere. From the streetlight outside of your house to the LED screen installed outside of a mall, you can never escape LEDs. They have also evolved with time. Conventional LEDs are now no longer the preference of the market. With a wide range of better and more progressive LEDs, traditional models are losing their charm. COB LED display is some of such new technologies.

COB LED Technology Explained

COB (Chip on Board) LED technology involves mounting multiple bare LED chips directly onto a PCB without individual packaging. This enables a much higher LED density compared to other methods like Surface Mounted Device (SMD) or Dual In-line Package (DIP), allowing for enhanced brightness, resolution, and color accuracy. The compact arrangement of red, green, and blue chips in COB technology offers a tighter pixel pitch, improving image clarity and quality. Additionally, COB LED displays benefit from better heat dissipation, higher reliability, and greater durability, making them ideal for high-definition and large-scale displays.

COB technology also reduces manufacturing complexity by eliminating the need for wire bonding, enabling more efficient energy use and longer-lasting displays. These advantages make COB LED screens particularly suitable for demanding environments like outdoor displays, digital billboards, and indoor fine-pitch applications.

What’s COB LED Display?

A COB LED display integrates LED chips directly onto the circuit board without individual housing, creating a seamless surface with improved light uniformity. The chips, encapsulated in epoxy resin, form an integrated system that acts as a single light source, eliminating gaps between LEDs. This structure enhances brightness, contrast, and overall visual performance. By removing the packaging around individual LEDs, COB displays achieve superior brightness levels and better viewing experiences compared to traditional LED technologies.

SMD vs. COB Packaging Technology

COB technology offers several advantages over SMD displays, particularly in terms of pixel pitch and resolution. COB technology supports much smaller components than SMD, which is limited to components larger than 0.5 mm. COB can handle components down to micrometers, allowing for higher density and better resolution, making it ideal for high-definition displays.

COB displays are also more durable due to the encapsulation of the chips, protecting them from environmental factors like dust and moisture. SMD displays, with their exposed design, are more prone to damage.

In terms of heat management, COB technology excels by mounting the chips on a single board, allowing for better thermal dissipation. This reduces the risk of overheating and extends the overall lifespan of the display, making COB technology more reliable for long-term use.

Related article: SMD LED Vs DIP LED Vs COB LED, Which Is Better?

Benefits of COB LED Display

COB LED displays offer several key advantages that make them stand out in the display market. Here are some of the notable advantages:

1. Superior Pixel Pitch

COB LED technology offers a key advantage in pixel pitch. With much tighter spacing between pixels, it achieves higher resolutions, often up to 4K. This tighter pixel pitch ensures that even at close viewing distances, the display appears smooth and clear. The result is enhanced image quality, making COB LED displays ideal for settings like control rooms, large video walls, and digital signage. The reduced gap between pixels significantly improves visual clarity and detail, ensuring an immersive viewing experience.

2. Improved Reliability

COB LED displays are known for their durability. The chips are directly mounted and encapsulated in epoxy resin. This design provides water-proof and dust-proof protection. Moisture- and dust resistance reduce the risk of environmental damage. Fewer solder points also minimize potential failure. This makes COB LED displays more reliable in the long run, especially in challenging environments where consistent performance is crucial. This enhanced durability ensures the display can withstand moisture, dust, and even impact without compromising functionality.

3. Energy Efficiency

COB LED technology is more energy-efficient compared to traditional display technologies. It reduces power consumption, making it a cost-effective option for continuous use, especially in large-scale applications. Lower energy usage also translates to reduced operational costs.

4. Enhanced Viewing Experience

COB displays offer a superior viewing experience with enhanced brightness, deeper contrast, and wide viewing angles of up to 170 degrees. These displays are ideal for indoor environments that require high-resolution images, such as schools, 4K video walls, and architectural studios. The seamless surface and improved color accuracy deliver vivid and lifelike images. COB technology also outperforms SMD in terms of visual clarity, especially for applications like car showrooms or exhibition spaces where detailed visuals and realistic color reproduction are essential.

For large-format displays, COB technology offers a seamless design with no visible gaps between the modules. This creates a smooth visual experience, which is especially beneficial for applications requiring giant displays, such as digital billboards or large video walls.

Challenges of COB LED Technology

Despite its many advantages, COB LED technology comes with a few challenges that manufacturers and users should consider.

1. Higher Initial Costs

The advanced technology and manufacturing process involved in COB LED displays often result in higher upfront costs. However, the long-term benefits in terms of durability, performance, and energy efficiency can outweigh the initial investment.

2. Complex Manufacturing Process

The process of mounting multiple LED chips directly onto a PCB is more complex and requires precision engineering. This can lead to longer production times and higher production costs compared to traditional LED display technologies.

3. Maintenance Complexity

While COB LED displays are durable, repairing individual LEDs can be more challenging due to the integrated nature of the design. However, advances in repair techniques are gradually mitigating this issue.

Applications of COB LED Displays

COB LED technology has a wide range of applications across various industries. Some of the most prominent applications include:

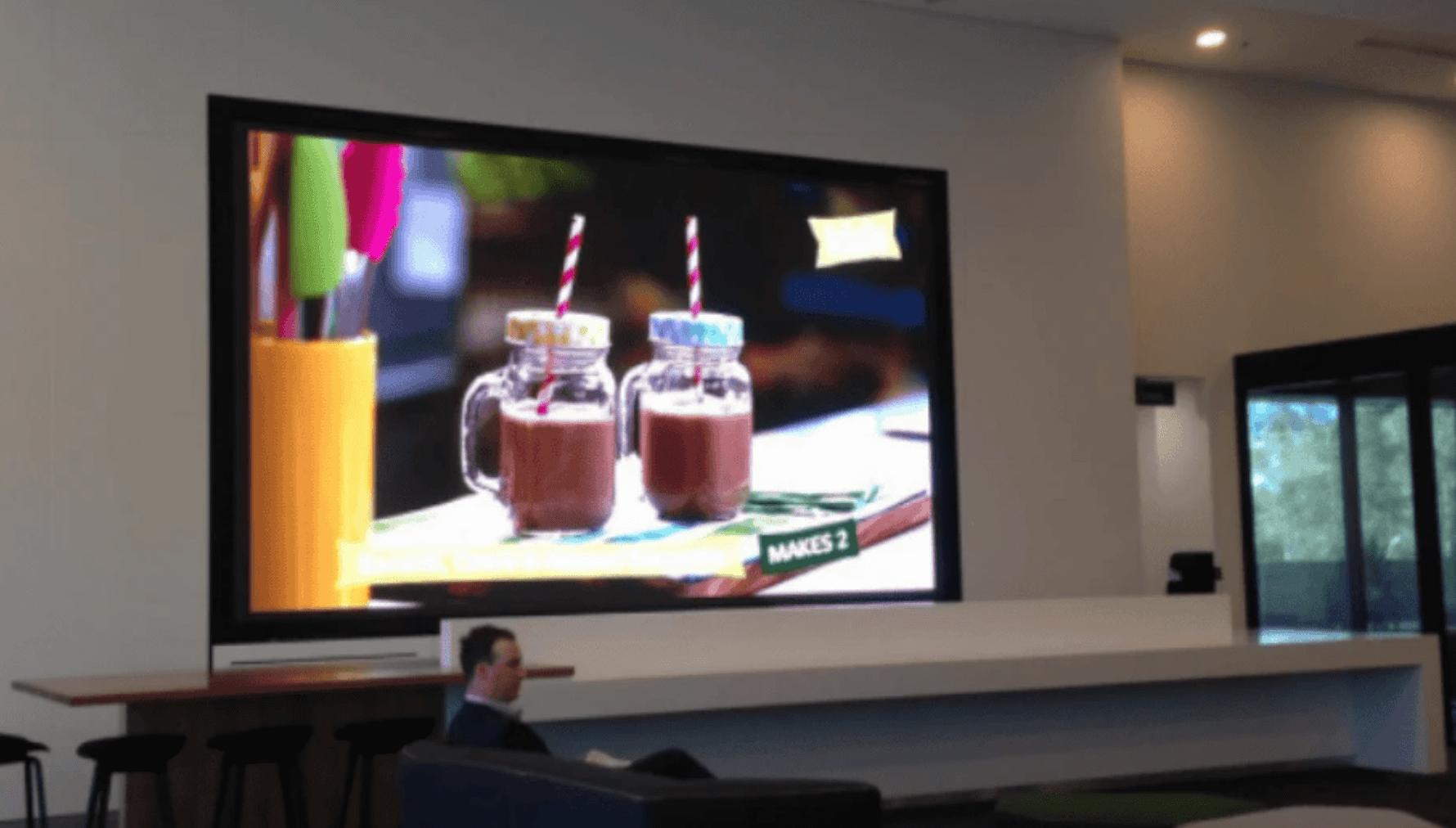

1. Indoor Displays

COB LED displays are widely used for indoor settings where high resolution and seamless design are required. Examples include control rooms, conference centers, and retail displays.

2. Outdoor Displays

Thanks to their durability and weather resistance, COB LED displays are commonly used for outdoor digital billboards, public advertising, and stadium displays. The technology ensures that the display remains operational even in challenging environmental conditions.

3. High-Precision Environments

Industries that require high-precision displays, such as aerospace, medical imaging, and broadcasting, benefit greatly from the high resolution and accuracy of COB LED displays.

4. Home Entertainment Systems

In recent years, COB LED technology has found its way into home entertainment systems. With its superior image quality and seamless design, COB LED displays are becoming a popular choice for home theaters and personal entertainment setups.

Choose Cob Led Display from PTCLED

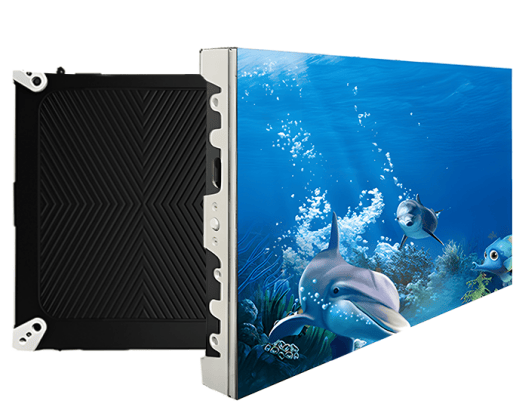

When choosing a COB LED display from PTCLED, you’re selecting high-quality products designed for indoor environments where high resolution and vibrant visuals are essential. PTCLED’s COB displays offer features like ultra-fine pixel pitch, seamless screen integration, and excellent durability with water-proof and dust-proof designs. These displays are ideal for applications like control rooms, broadcasting studios, and high-traffic public areas, delivering exceptional brightness, contrast, and a long lifespan.

Explore PTCLED's range of COB LED displays for reliable performance and cutting-edge technology.

Conclusion

COB LED technology represents a significant advancement in display technology, offering high-resolution, energy-efficient, and durable displays suitable for various applications. Whether used in large-scale outdoor displays, indoor signage, or high-precision environments, COB LED displays provide an unparalleled viewing experience. While the initial investment may be higher, the long-term benefits of COB LED technology make it a worthwhile choice for anyone looking to invest in cutting-edge display solutions.

If you have any more question, please do not hesitate to contact us!
